Land Surveying
Capture repeatable aerial data across land parcels, development areas and large outdoor sites for mapping and survey workflows.
Mapping & Surveying Drones
AeroSightX mapping and surveying drones support aerial data collection across construction sites, land areas, infrastructure corridors and other large-scale environments. Configure the UAV platform, imaging payload, positioning system, flight coverage and endurance around your mapping or survey requirements.
Mapping Applications
Where Are Drones Used for Mapping & Surveying?
Survey area, terrain, access and required output determine the appropriate aircraft, sensor and flight plan.
Construction Sites
Support site mapping, progress documentation and repeatable aerial records throughout different stages of construction.
Infrastructure Corridors
Collect aerial data along roads, power lines, pipelines and other linear infrastructure routes.

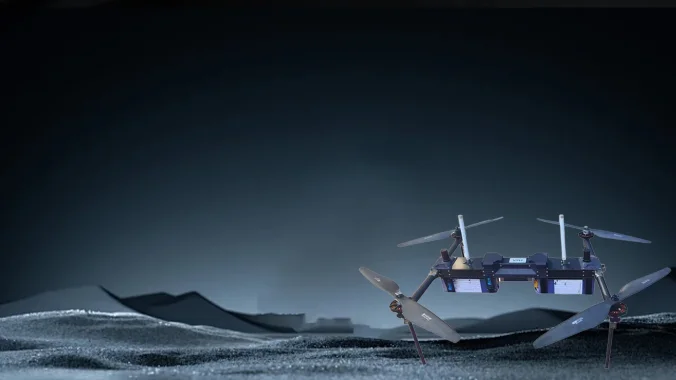

Remote & Mountainous Terrain
Collect aerial mapping data across mountainous, remote and difficult-to-access terrain where conventional ground access may be limited or inefficient.
Mining & Quarry Sites
Support aerial mapping, terrain documentation and repeatable data collection across suitable mining, quarry and stockpile environments.
Urban Planning & Development
Capture aerial data for site planning, development assessment and repeatable documentation across urban and development areas.
Mapping Workflow
How Drone Mapping & Surveying Works
A repeatable mapping workflow connects the survey area, aircraft, sensor, flight plan and downstream data process.
- 01
Define the Survey Area
Area size / Terrain / Required coverage / Site restrictions
- 02
Select UAV & Sensor
Multi-rotor / VTOL / Camera / Mapping payload / Positioning system
- 03
Plan the Flight
Altitude / Route / Overlap / Speed / Takeoff and landing
- 04
Capture Aerial Data
Execute repeatable flight paths across the defined survey area.
- 05
Process the Data
Organize captured imagery and positioning information for compatible downstream mapping or photogrammetry workflows.
- 06
Review & Deliver
Prepare the required maps, models, imagery or project data according to the selected processing workflow.
Photogrammetry
Drone Photogrammetry & Aerial Data Collection
Drone photogrammetry uses overlapping aerial images and positioning information to support the creation of maps, models and other spatial outputs through compatible processing software. Flight altitude, image overlap, camera configuration, positioning accuracy and site conditions all influence the quality of the collected dataset.
Orthomosaic Mapping
Structured aerial imagery for map-oriented site documentation.
3D Models
Overlapping imagery can support compatible 3D reconstruction workflows.
Terrain & Surface Models
Aerial datasets can support terrain or surface representation depending on the sensor and processing method.

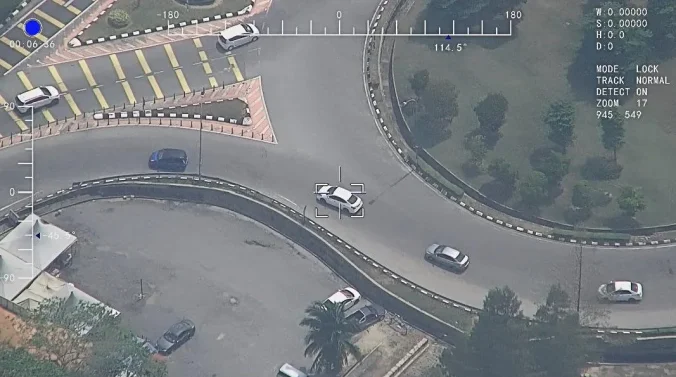

Progress Documentation
Repeatable flights can create comparable aerial records across different project stages.
Aircraft Type
Multi-Rotor vs VTOL Drones for Mapping
Aircraft type changes the balance between local detail, route length, coverage efficiency and operating space.
| Decision Factor | Multi-Rotor UAV | VTOL Fixed-Wing UAV |
|---|---|---|
| Best Fit | Small–medium sites | Larger-area mapping |
| Takeoff | Vertical | Vertical |
| Hovering | Yes | Limited / not primary mission |
| Coverage | Moderate | Higher |
| Route Length | Shorter | Longer |
| Typical Use | Detailed / local mapping | Corridor / large-area survey |
The appropriate platform depends on survey area, terrain, required image detail, payload, endurance and available operating space.
Survey Payloads
Sensors & Positioning for Drone Surveying
Configure the imaging and positioning system around the required dataset rather than selecting the aircraft alone.
Mapping Camera
Capture overlapping aerial imagery for compatible mapping and photogrammetry workflows.

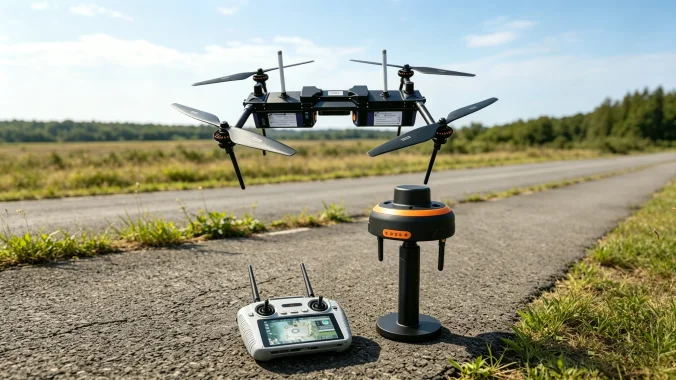

Positioning System
GNSS-based positioning supports flight navigation and georeferenced aerial data collection according to the selected system configuration.
RTK / PPK Configuration
Where supported by the selected aircraft and positioning system, RTK or PPK workflows can be considered for projects requiring improved positioning accuracy.
Custom Payload Integration
Mission-specific cameras or compatible mapping sensors can be evaluated according to payload weight, interface, power and flight requirements.
For projects requiring LiDAR or other specialized survey payloads, confirm sensor weight, interface, power supply, positioning requirements and aircraft compatibility before configuration.
Survey Accuracy
What Determines Drone Mapping Accuracy?
Accuracy depends on the complete data-collection and processing method, not one aircraft specification.
Positioning System
GNSS, RTK/PPK configuration and ground-reference workflow can affect positional accuracy.
Flight Altitude
Altitude influences ground resolution and coverage.
Image Overlap
Appropriate forward and side overlap supports photogrammetric processing.
Camera & Sensor
Resolution, lens and sensor characteristics affect the captured dataset.
Ground Control
Ground control points may be used where required by the survey methodology.
Processing Workflow
Software, calibration and data-processing methods influence final mapping outputs.
Mapping accuracy should therefore be specified at the project level rather than assumed from the drone model alone.
Platform Comparison
Compare Mapping UAV Platforms
Select a mapping platform based on coverage area, flight duration, payload and terrain.
Flexible Mapping Platform
XJ 8A Multi-Mission UAV
Flexible multi-rotor platform for local-area mapping, inspection and mission-specific payload integration.
- Max payload
- 5 kg
- Max takeoff weight
- 16.5 kg
Best for: Small & medium areas
View XJ 8A →
Extended-Endurance Mapping Platform
XJ H4A Long-Endurance Drone
Long-endurance UAV for mapping and surveying missions requiring longer flight duration while retaining multi-rotor flexibility.
- Max payload
- 1.5 kg
- Max takeoff weight
- 10 kg
Best for: Medium & larger areas
View XJ H4A →
Wide-Area Mapping Platform
XJ TR1 VTOL Fixed-Wing Drone
VTOL fixed-wing platform for wide-area mapping, corridor surveying and long-range data-collection missions.
- Standard / max payload
- 2 kg / 5 kg
- Max takeoff weight
- 32 kg
Best for: Large areas & linear projects
View XJ TR1 →Selection Logic
Which UAV Fits Your Mapping Mission?
High Flexibility
XJ 8A · Multi-Rotor
- Smaller mapping areas
- Complex terrain
- Frequent repositioning
- Flexible payload integration
Choose XJ 8A when maneuverability and payload flexibility matter more than maximum coverage.
Longer Flight Duration
XJ H4A · Long-Endurance
- Medium-sized survey areas
- Longer flight requirements
- Repeated mapping missions
- Multi-rotor flexibility
Choose XJ H4A when the project needs greater endurance without moving to a fixed-wing platform.
Wide-Area Coverage
XJ TR1 · VTOL Fixed-Wing
- Large-area mapping
- Long corridors
- Linear infrastructure
- Efficient point-to-point coverage
Choose XJ TR1 when coverage efficiency is the primary requirement.
Mission Development

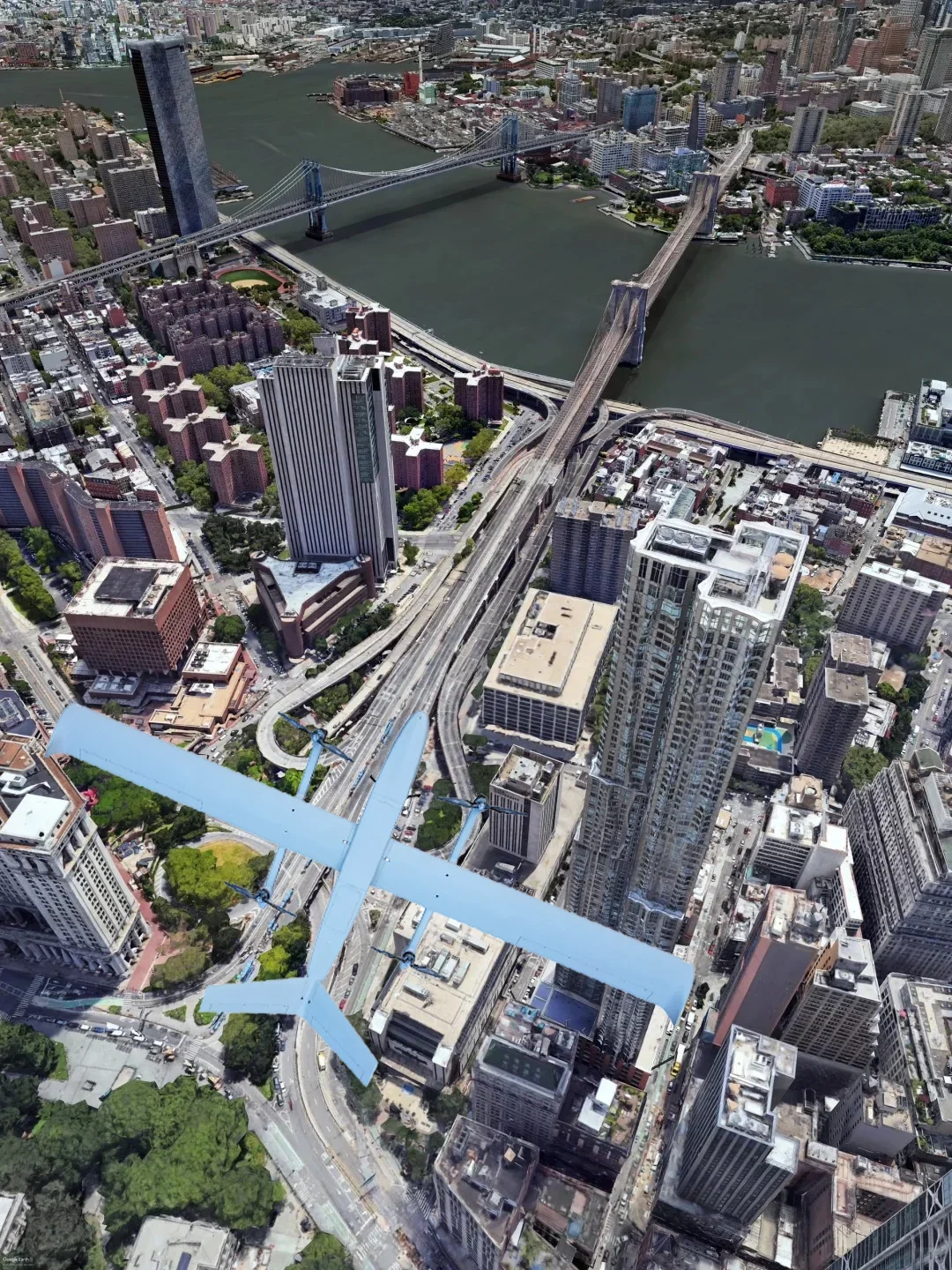

Need a Mission-Specific Mapping UAV?
Mapping projects vary in coverage, terrain, payload and data requirements. AeroSightX can evaluate an existing UAV platform or support a customized configuration around the project.
Discuss a Custom Mapping UAV01
Payload Integration
02
Flight Configuration
03
Endurance Requirements
04
Mission Functions
05
Data Requirements
06
Custom Equipment
Engineering & Manufacturing
From Mission Requirements to a Buildable UAV Configuration
AeroSightX is backed by in-house manufacturing and integration capabilities, supporting requirement analysis, airframe and payload configuration, component assembly, system testing, packaging, and project delivery for both standard and customized UAV programs.
Explore our factory and production process →Related Resources
Explore Mapping & Inspection Resources
Inspection & Long-Endurance Drones →Compare aircraft platforms for local, extended and large-area mapping.XJ-8A Local Mapping →Explore a flexible multi-rotor platform for detailed local-area missions.XJ-H4A Extended Mapping →Review a long-endurance multi-rotor platform for extended survey workflows.XJ-TR1 Large-Area Mapping →Explore VTOL coverage for larger sites and corridor routes.Power Line Inspection →Review a related utility-corridor inspection workflow.Precision Agriculture →Connect field mapping with agricultural data and operations.Drone Inspection Services Guide →Review evidence, sensors and data-delivery considerations for UAV projects.Custom UAV Development →Discuss specialized survey payload and positioning requirements.
Frequently Asked Questions
Drone Mapping & Surveying FAQs
Review photogrammetry, accuracy, aircraft selection and specialized payload options before defining a survey configuration.
View More FAQs →What is drone mapping?
Drone mapping uses aerial imagery and positioning data collected by UAVs to support the creation of maps, models and other spatial outputs through compatible processing workflows. The required aircraft, sensor and flight plan depend on the survey area and desired output.
How are drones used for land surveying?
Drones can fly planned routes over a defined land area and capture overlapping aerial imagery with positioning information. The collected dataset can then be processed using suitable mapping or photogrammetry software according to the project methodology.
What is drone photogrammetry?
Drone photogrammetry is the process of using overlapping aerial photographs to reconstruct spatial information about a site or surface. Image quality, overlap, positioning, flight altitude and processing methods all affect the resulting dataset.
How accurate is drone surveying?
Drone survey accuracy depends on the positioning system, flight altitude, camera, image overlap, ground control, RTK or PPK configuration where applicable, and the processing workflow. Accuracy should be defined according to the complete survey method rather than the UAV alone.
What is the difference between a mapping drone and a surveying drone?
The terms often overlap. A mapping drone generally refers to a UAV used to collect aerial data for maps or models, while surveying applications may require additional positioning, control and accuracy requirements depending on the project.
Which drone is suitable for large-area mapping?
For larger areas and longer routes, long-endurance or VTOL fixed-wing UAVs can provide more efficient coverage than conventional multi-rotor platforms. Aircraft selection should also consider payload, terrain, required image resolution and available takeoff and recovery areas. Explore the XJ-TR1 VTOL fixed-wing UAV.
Can drones be used for corridor mapping?
Yes. UAVs can support mapping along roads, utilities and other linear infrastructure corridors. Longer routes require planning around endurance, communication range, terrain, payload and operating requirements.
Can mapping drones use RTK, PPK or LiDAR?
Some UAV configurations can support RTK, PPK or specialized mapping payloads such as LiDAR, depending on the aircraft and integration requirements. Compatibility should be confirmed according to sensor weight, interface, power supply, positioning system and required survey workflow.
Mapping Project Review
Planning a Mapping or Surveying Project?
Tell us the project type, coverage area, terrain, payload requirements and expected deliverables. Our team can recommend an existing AeroSightX platform or evaluate a customized UAV configuration.
Project Type · Area Size · Payload · Terrain · Flight Duration · Deliverables
Discuss Your Mapping Project
